In this section, we will examine a program that moves a texture created from a .png image file and loaded into the main window with the arrow keys and displays the status of these keys in the main window title.

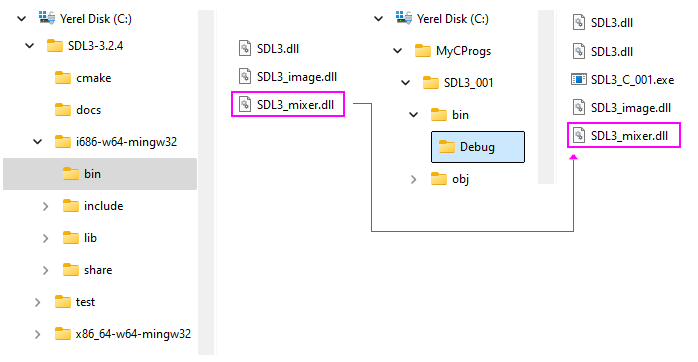

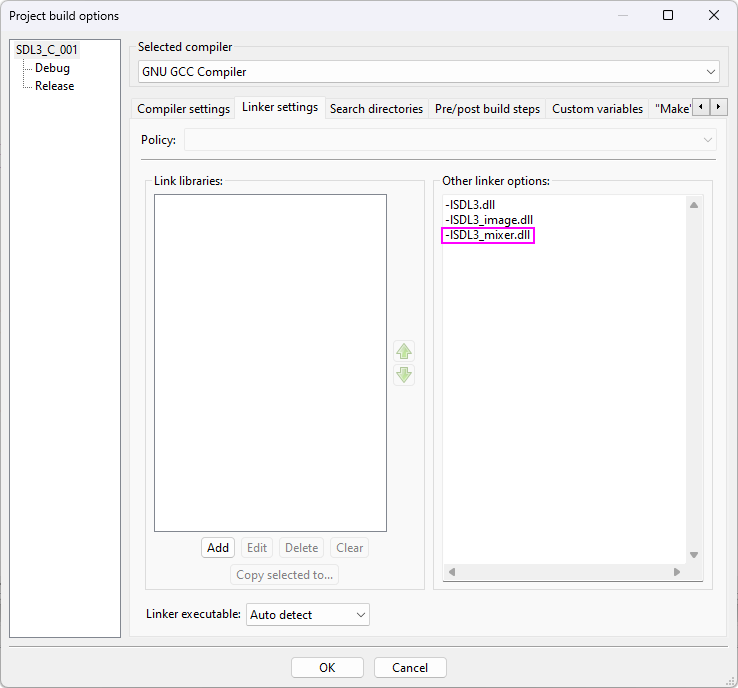

To perform sound operations with SDL3, we need to use the here SDL_mixer library that we installed. For this purpose, we need to perform the following three operations:
#include <SDL3_mixer/SDL_mixer.h>
When the program is run, in addition to the basic operations, the following operations are performed:
main.c file content will be as follows:
#include <stdio.h>
#include <SDL3/SDL.h>
#include <SDL3_image/SDL_image.h>
#include <SDL3_mixer/SDL_mixer.h>
// Window width and height
#define WINDOW_WIDTH 640
#define WINDOW_HEIGHT 480
// Global variables
int is_running = false; // Variable that controls the execution of the main loop of the program
SDL_Window *window = NULL; // Main window variable
SDL_Texture *texture = NULL; // Texture variable
SDL_Renderer *renderer = NULL; // Renderer variable
float x, y;
int button_no;
Mix_Music *music = NULL;
Mix_Chunk *chunk_wav = NULL;
Mix_Chunk *chunk_mp3 = NULL;
Mix_Chunk *chunk_ogg = NULL;
// Function prototypes
int init_window(void); // Create window and renderer
void init_vars(void); // Initialize variables
void load_media(void); // Load media
void process_event(void); // Process events
void update_screen(); // Update values
void draw_screen(void); // Draw screen
void destroy_window(void); // Destroy window
int main(int argc, char* argv[])
{
// Create window and renderer
is_running = init_window();
// Initialize variables
init_vars();
// Load image, sound and music
load_media();
// Main loop
while (is_running) {
process_event(); // Processing SDL events (Here keyboard inputs)
update_screen(); // Updating variables
draw_screen(); // Drawing objects on the window (Rendering)
}
// Destroy renderer and SDL window
destroy_window();
return 0;
}
// Create window and renderer
int init_window(void)
{
// Initialize the SDL library.
if(SDL_Init(SDL_INIT_VIDEO) == false) {
SDL_Log("SDL init error: %s\n", SDL_GetError());
return false;
}
// Create a window and a 2D rendering context for the window.
if(!SDL_CreateWindowAndRenderer("SDL3 window", WINDOW_WIDTH, WINDOW_HEIGHT, 0, &window, &renderer)) {
return false;
}
SDL_AudioSpec audio_spec;
// Initialize SDL_mixer
SDL_zero(audio_spec);
audio_spec.format = MIX_DEFAULT_FORMAT;
audio_spec.channels = 2;
audio_spec.freq = 44100;
if(!Mix_OpenAudio(0, &audio_spec)) {
SDL_Log("SDL_mixer initialization error: %s\n", SDL_GetError());
return false;
}
return true;
}
// Initialization function that runs only once at the beginning of the program
void init_vars(void)
{
button_no = 0;
}
// Load image, sound and music
void load_media(void)
{
// Load image to texture
texture = IMG_LoadTexture(renderer, "menu_sound.png");
if(texture == NULL) {
SDL_Log("IMG_LoadTexture error: %s\n", SDL_GetError());
}
// Load music
music = Mix_LoadMUS("music.mp3");
if(music == NULL) {
SDL_Log( "Load music error%s\n", SDL_GetError());
}
chunk_wav = Mix_LoadWAV("notification.wav");
if(chunk_wav == NULL) {
SDL_Log( "Load music error%s\n", SDL_GetError());
}
chunk_mp3 = Mix_LoadWAV("notification.mp3");
if(chunk_mp3 == NULL) {
SDL_Log( "Load music error%s\n", SDL_GetError());
}
chunk_ogg = Mix_LoadWAV("notification.ogg");
if(chunk_ogg == NULL) {
SDL_Log( "Load music error%s\n", SDL_GetError());
}
}
// Function to control SDL events and process keyboard inputs
void process_event(void)
{
SDL_Event event;
// Creating a loop to process user inputs
while (SDL_PollEvent(&event)) {
switch (event.type) {
case SDL_EVENT_MOUSE_BUTTON_DOWN:
case SDL_EVENT_MOUSE_MOTION:
{
SDL_GetMouseState(&x, &y);
SDL_Point mouse_pos = { event.motion.x, event.motion.y };
SDL_Rect rect_menu = { 20, 20, 120, 30 };
button_no = 0;
bool lb_state = event.type==SDL_EVENT_MOUSE_BUTTON_DOWN && event.button.button==SDL_BUTTON_LEFT;
// Checking whether the mouse is inside the button
if(SDL_PointInRect(&mouse_pos, &rect_menu)) {
button_no = 1;
if(lb_state) Mix_PlayChannel(-1, chunk_wav, 0);
}
rect_menu.y = 60;
if(SDL_PointInRect(&mouse_pos, &rect_menu)) {
button_no = 2;
if(lb_state) Mix_PlayChannel(-1, chunk_mp3, 0);
}
rect_menu.y = 100;
if(SDL_PointInRect(&mouse_pos, &rect_menu)) {
button_no = 3;
if(lb_state) Mix_PlayChannel(-1, chunk_ogg, 0);
}
rect_menu.y = 140;
if(SDL_PointInRect(&mouse_pos, &rect_menu)) {
button_no = 4;
if(lb_state) {
if(Mix_PlayingMusic() == 0) {
Mix_PlayMusic(music, -1);
}
else {
Mix_HaltMusic();
}
}
}
if(button_no>0) SDL_SetCursor(SDL_CreateSystemCursor(SDL_SYSTEM_CURSOR_POINTER));
else SDL_SetCursor(SDL_CreateSystemCursor(SDL_SYSTEM_CURSOR_DEFAULT));
}
break;
case SDL_EVENT_QUIT: // Logout action by the user (x button at the top right of the window)
is_running = false; // Terminates the execution of the program main loop.
break;
case SDL_EVENT_KEY_DOWN: // Key pressed.
if(event.key.key==SDLK_ESCAPE) {
is_running = false;
}
break;
}
}
}
// Updates objects in the main window
void update_screen(void)
{
}
// Render function used to draw game objects in the main window
void draw_screen(void)
{
SDL_SetRenderDrawColor(renderer, 0, 0, 0, 255); // Set the color used for drawing operations.
SDL_RenderClear(renderer); // Clear the current rendering target with the drawing color.
// Copy menu texture to main window
SDL_FRect frect_dst = { 20, 20, 120, 150 };
SDL_RenderTexture(renderer, texture, NULL, &frect_dst);
// Loading all objects drawn one by one to the back buffer to the front buffer at once and loading them onto the screen
// This process prevents each drawn object from being displayed on the screen one by one.
SDL_RenderPresent(renderer); // Update on screen all operations performed since the previous call
char cdizi[100];
char sound_file[5];
switch(button_no) {
case 0:
strcpy(sound_file, "None");
break;
case 1:
strcpy(sound_file, "Wav");
break;
case 2:
strcpy(sound_file, "Mp3");
break;
case 3:
strcpy(sound_file, "Ogg");
break;
case 4:
strcpy(sound_file, "Mp3");
break;
}
sprintf(cdizi, "SDL3 window - Mouse: x: %.2f y: %.2f Mouse in button: %d Source: %s", x, y, button_no, sound_file);
SDL_SetWindowTitle(window, cdizi);
}
// Destroy Renderer and SDL window, exit from SDL3
void destroy_window(void)
{
SDL_DestroyTexture(texture);
SDL_DestroyRenderer(renderer);
SDL_DestroyWindow(window);
SDL_Quit();
}
